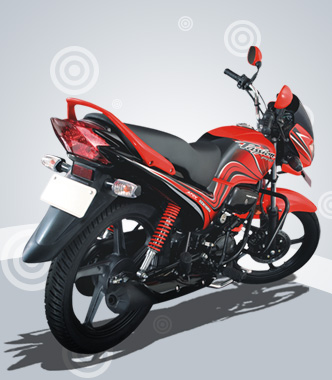

Passion Pro
Passion Pro
Price:   50,717*
Specifications



Type

Displacement

Max. Power

Max. Torque

Bore x Stroke

Starting

Ingnition



Air-cooled, 4-stroke single cylinder OHC

97.2 cc

5.74 kW (7.8 Ps) at 7500 rpm

0.82 kg-m (8.04 N.m) at 4500 rpm

50.0 x 49.5 mm

Kick start / Self start

DC – Digital CDI



Cluch

Gear box

Chassis Type



Multi-plate wet

4 Speed constant mesh

Tubular double cradle frame



Front
Rear



Telescopic hydraulic shock absorbers

Swing arm with hydraulic shock absorber



Front Brake

Rear Brake Drum



Disc Brake – Dia 240 mm

Internal expanding shoe type (130 mm)



Rim Size Front

Rim Size Rear

Tyre Size Front

Tyre Size Rear



18 x 1.60, Spoke wheels / Cast wheel

18 x 1.60, Spoke wheels / Cast wheel

2.75 x 18 – 4 PR / 42 P

3.00 x 18 – 6 P / 52 PR



Battery

Head Light

Tail Stop Lamp

Turn Signal Lamp



12V-3 Ah

12V-35W/Halogen Bulb, Trapezoidal, MFR

12V – 5 / 10 W (Twin bulb), MFR

12V – 10W (Amber bulb) x 4 nos MFR, clear lens



Length

Width

Height

Wheelbase

Saddle Height

Ground Clearance

Fuel Tank Capacity

Reserve

Kerb Weight

Minimum Turning



1980 mm

725 mm

1075 mm

1235 mm

795 mm

165 mm

12.8 ltrs. ( Min)

1 ltrs. ( Usable reserve )

116 Kg (Kick) / 119 kg (Self)

1.90 mtrs.

  Glamour Color
