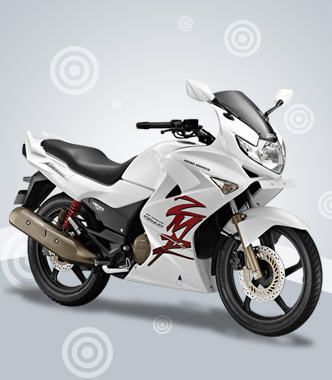

Karizma ZMR
Karizma ZMR
Price:   96,773 *
Specifications



Type


Displacement

Max. Power

Max. Torque

Acceleration

Bore x Stroke

Compression Ratio

Starting

Ingnition


Engine oil grade



Air cooled, 4 - stroke single cylinder OHC, fuel injection

223 cc

13.15 kW (17.6 bhp) @ 7000rpm

18.35 N m @ 6000 rpm

0-60 kmph in 3.7 sec

65.5 x 66.2 mm

9.0 : 1

Self Start

DC – FTIS (Full Transistorised Ignition System)

SAE 10 W 30 SJ grade (JASO MA Grade)



Cluch

Gear box

Chassis Type



Multi-plate wet

5 Speed constant mesh

Diamond Frame



Front
Rear



Telescopic hydraulic shock absorbers

Swing arm with 5 step adjustable IGRS system



Front Brake

Rear Brake Drum



Disc, Dia 276 mm

Disc Dia 240 mm



Rim Size Front

Rim Size Rear

Tyre Size Front

Tyre Size Rear



18 x 1.85, 5 Spoke cast wheel

18 x 2.15, 5 Spoke cast wheel

80 / 100 x 18 – 47 P tubeless

100 / 90 x 18 – 56 P tubeless



Battery

Head Light


Position Lamp

Tail Stop Lamp

Turn Signal Lamp



12 V -6 Ah, MF – Wet battery

12 V -35 W / 35W - Halogen bulb (Multi – reflector D.C type)

12 V – 5 W X 2 nos.

12 V -0.5 W / 4.1W LED lamp

12 V -21 W (Amber bulb) x 4 nos. (Multi – reflector clear lens)



Length

Width

Height

Wheelbase

Ground Clearance

Kerb Weight

Minimum Turning



2110 mm

805 mm

1175 mm

1350 mm

159 mm

159 kgs

2.50 metre

  Glamour Color
